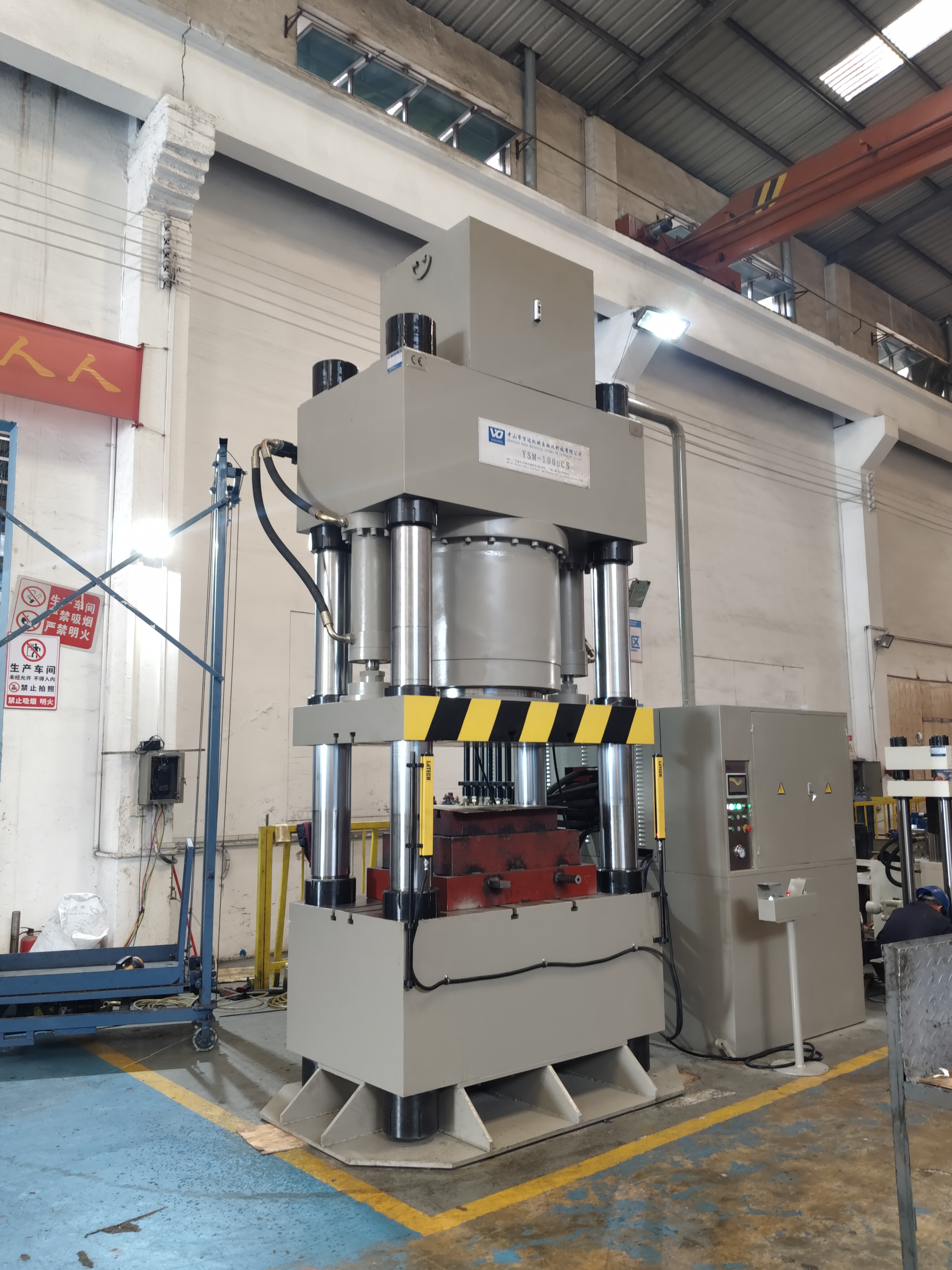

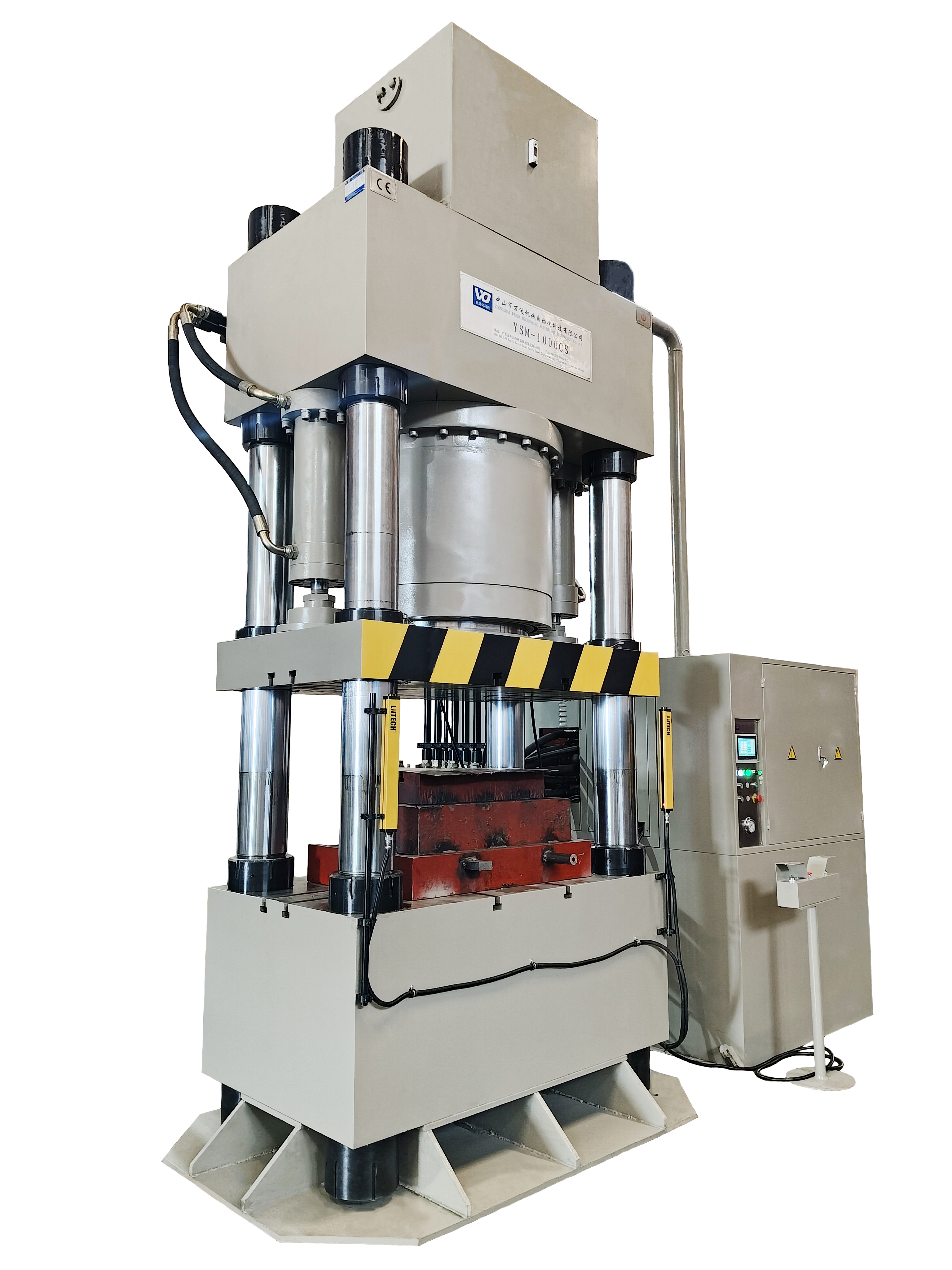

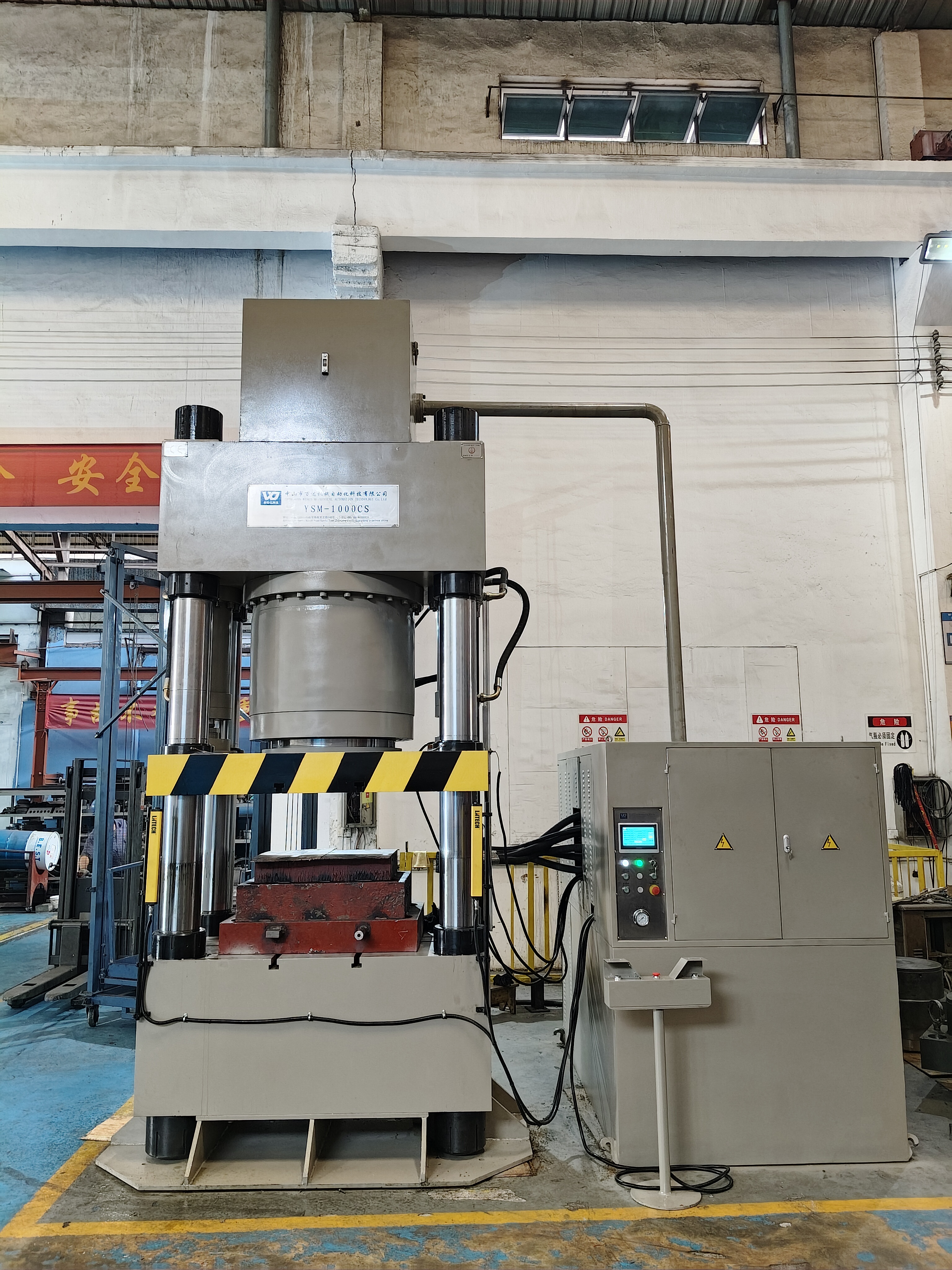

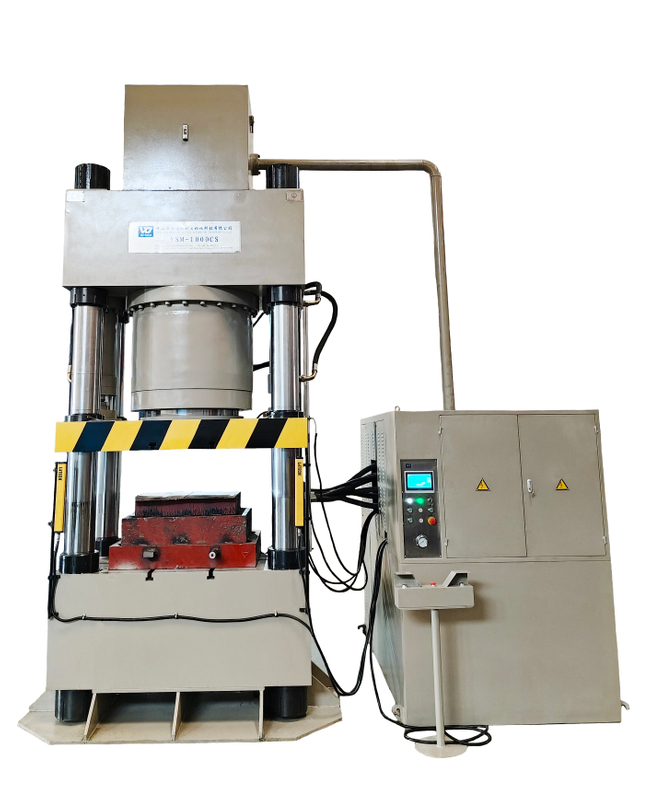

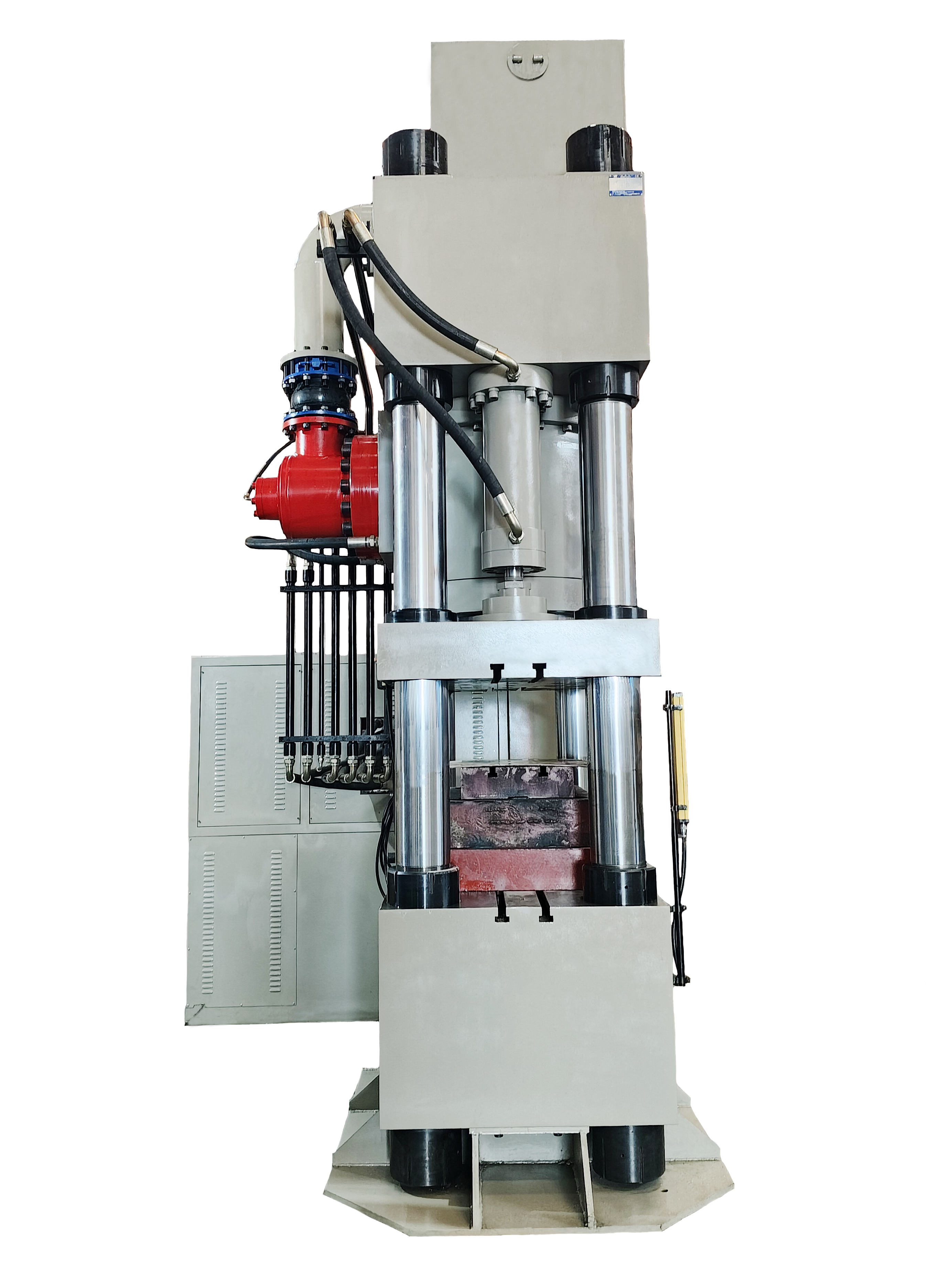

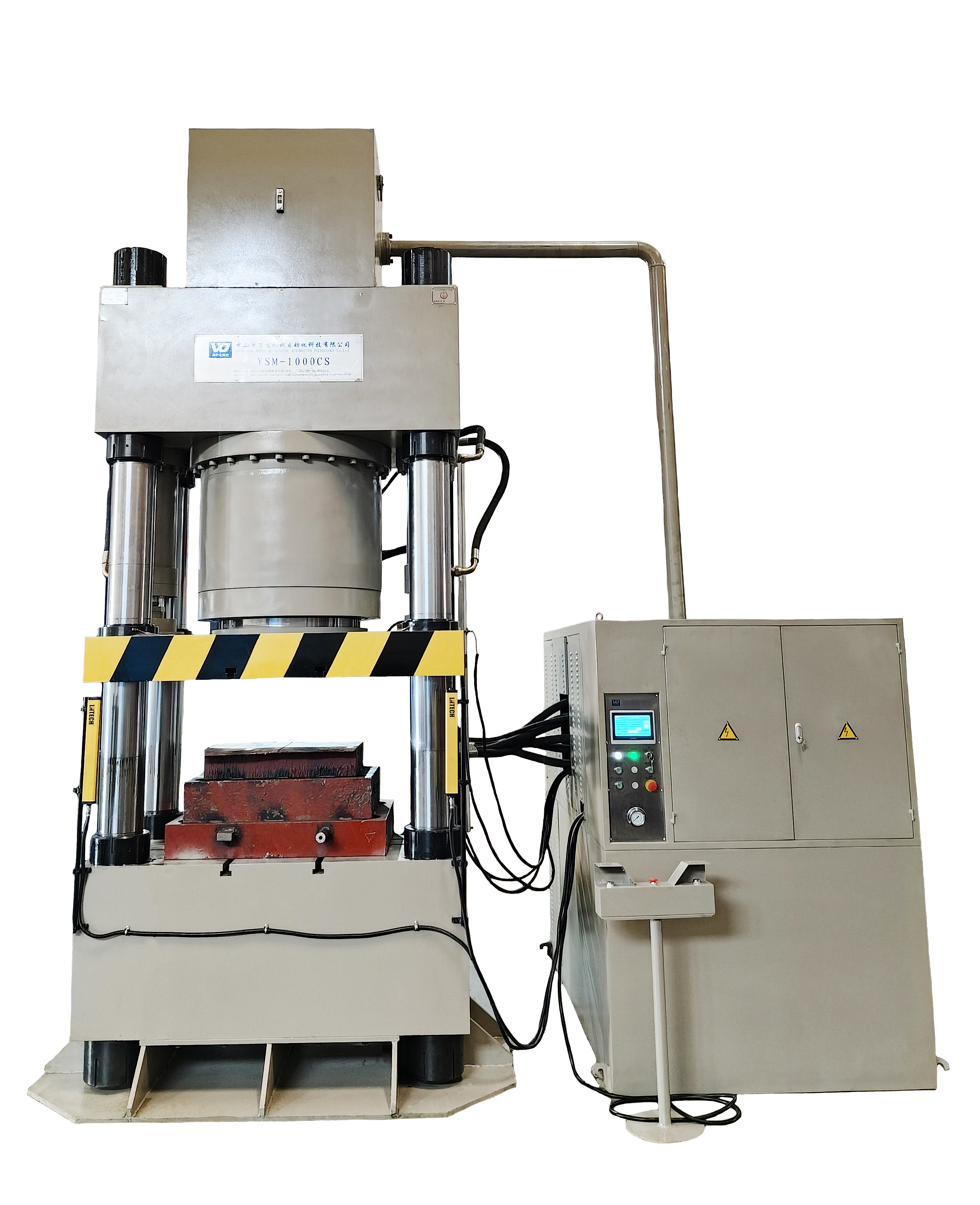

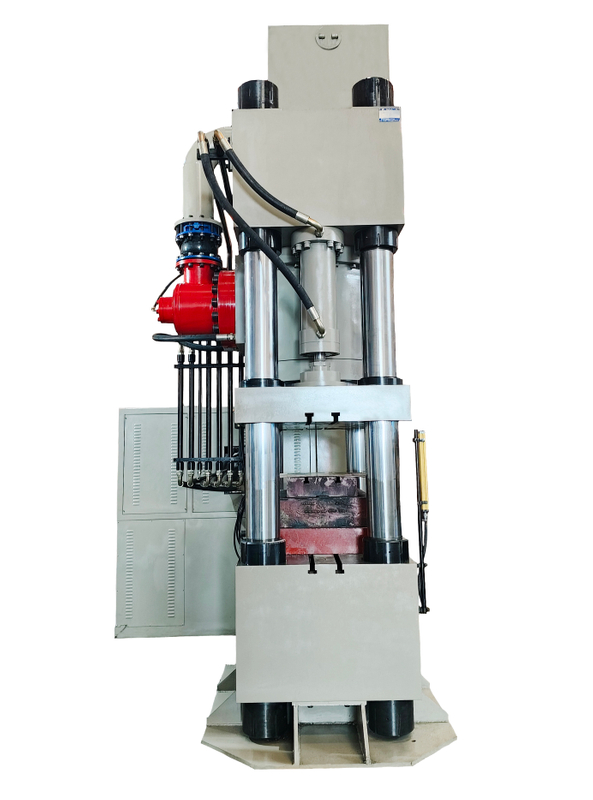

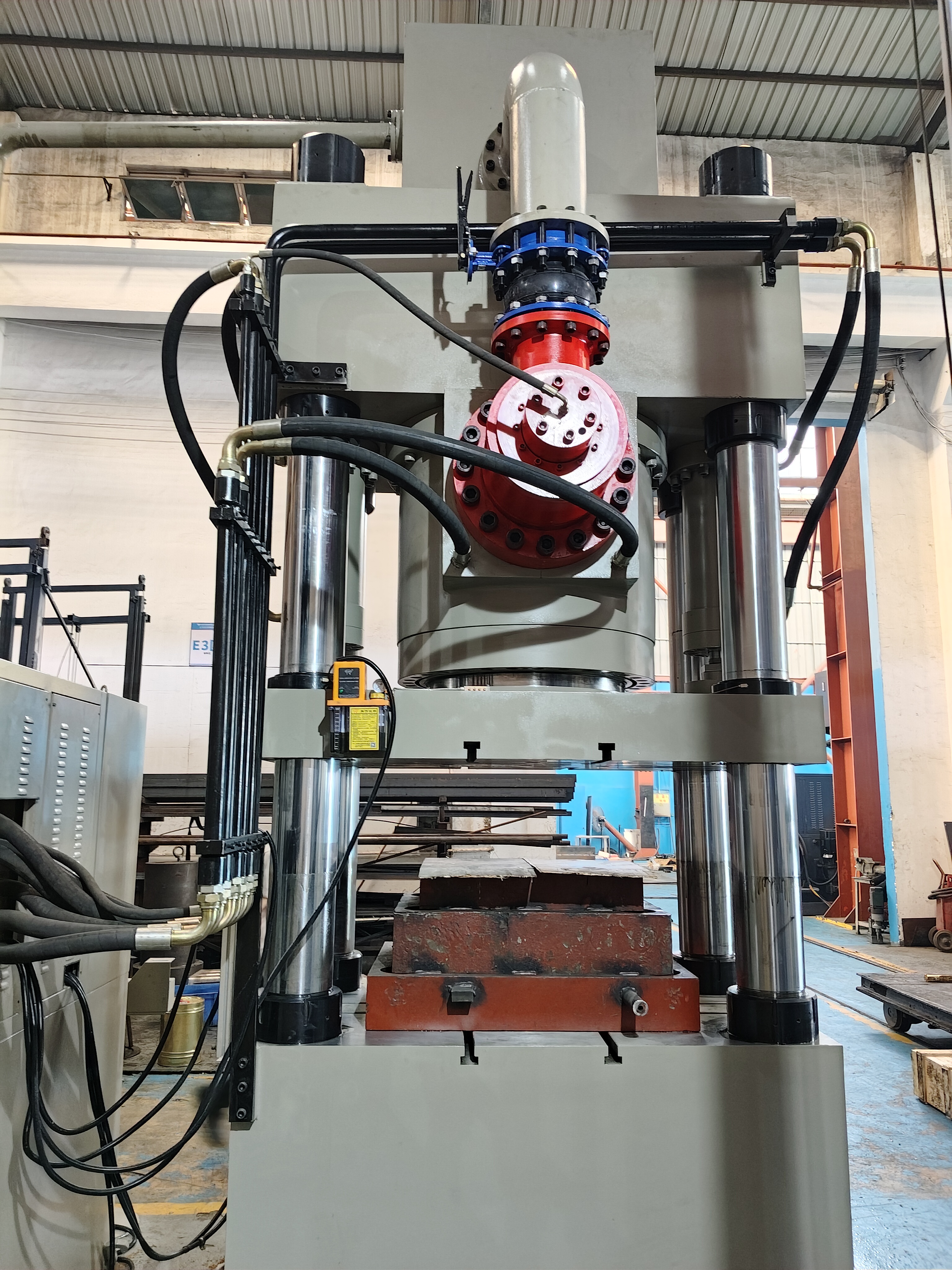

YSM-1000CS伺服精密数控液压机

一、机器用途、工作条件：
本机器适用于钢材、可塑性材料的冷挤压、热挤压,冲裁、落料、压延、压印、成型以及结构的校正工艺。机器具有独立的液压系统和电气系统，并采用触摸屏显示位移与产品计数，触摸屏+PLC+光栅尺组合，方便设置与控制滑块上限、快转慢、下限和保压时间等。可实现调整及自动两种工作方式。每种工作状态均可实现定压及定程两种压制方式。

I.Machine Applications and Working Conditions:
This machine is suitable for cold extrusion, hot extrusion, blanking, calendering, stamping, forming, and structural correction processes of steel and plastic materials. The machine has independent hydraulic and electrical systems, and uses a touch screen to display displacement and product counting. The combination of touch screen + PLC + grating ruler facilitates the setting and control of the upper limit of the slider, fast/slow rotation, lower limit, and holding time. It can achieve both adjustable and automatic working modes. Each working state can achieve both constant pressure and constant stroke pressing methods.

状态：

数量：



询价加入询价篮

型号：
YSM-1000CS
产品品牌：
万达

产品描述

产品描述

机器使用条件:

工作环境温度:0-55°C

相对湿度:不大于85%

电源电压:380V士5%50HZ

液压油温度5一50°C

海拔高度:不超过1000m

液压系统使用介质:46#抗磨液压油

Machine operating conditions:

Operating temperature: 0-55°C;

Relative humidity: not exceeding 85%;

Power supply voltage: 380V ± 5% 50HZ;

Hydraulic oil temperature: 5-50°C;

Altitude: not exceeding 1000m;

Hydraulic system medium: 46# anti-wear hydraulic oil.

二、工艺动作：

启动电机一主快速下行一主紅慢速压制一主缸保压(保压时间1-60秒可调)一主缸退回，取件(完成一个工作循环)。手动可单独控制每个动作。

II. Process Actions:

Start the motor – main cylinder moves rapidly downwards – main cylinder moves slowly downwards – main cylinder holds pressure (pressure holding time adjustable from 1-60 seconds) – main cylinder retracts, removing the part (completing one work cycle). Each action can be manually controlled individually.

主要技术参数：Main technical parameters:

序号 NO.	项目 Item		单位 Unit	规格 Spec.
1	公称力Nominal force		KN	10000（可调）(Adjustable)
2	最大行程Maximum stroke		mm	400（可调）(Adjustable)
3	最大开口高度Maximum opening height		mm	800
4	主缸速度 Main cylinder speed	快速下行fast downward	mm/s	（可调）(Adjustable)
		慢速压制slow pressing	mm/s	9-18（可调）(Adjustable)
		回程Return	mm/s	250（可调）(Adjustable)
5	工作台有效尺寸 Effective table size	左右（柱内）L.R(inside the column)	mm	1200
5	工作台有效尺寸 Effective table size	前后（边沿）F.B(edge)	mm	1000
6	液体最大工作压力 Maximum working pressure of the liquid		MPa	26
7	油泵伺服电机功率Oil pump servo motor power		KW	78.3
8	工作台上平面距地面高度 Height of the worktable surface from the ground		mm	700
9	滑块空载重复位移精度 Accuracy of the slider's no-load repeatable displacement		mm	±0.02mm
10	工作台与滑块平行度 Parallelism between the worktable and the slider		mm	小于0.30mm Less than 0.30mm
