Y28系列模型适用于金属薄板的拉伸成型调直等工艺例如:餐具灯饰金属外壳容器器皿等拉伸成型
本系列产品专业设计,采用名牌进口液压元件电器控制元件精工制作速度快精度高节约能源噪音低,操作方便,是五金电器行业理想设备
The Y28 series model is suitable for processes such as stretching, forming, and straightening of metal sheets. For example: tableware, lighting fixtures, metal shells, containers, etc. are stretched and formed.
This series of products is professionally designed, using famous brands, imported hydraulic components, electrical control components, precision manufacturing, fast speed, high precision, energy saving, low noise, easy operation, and is an ideal equipment for the hardware and electrical industry.
状态: | |
---|---|
数量: | |

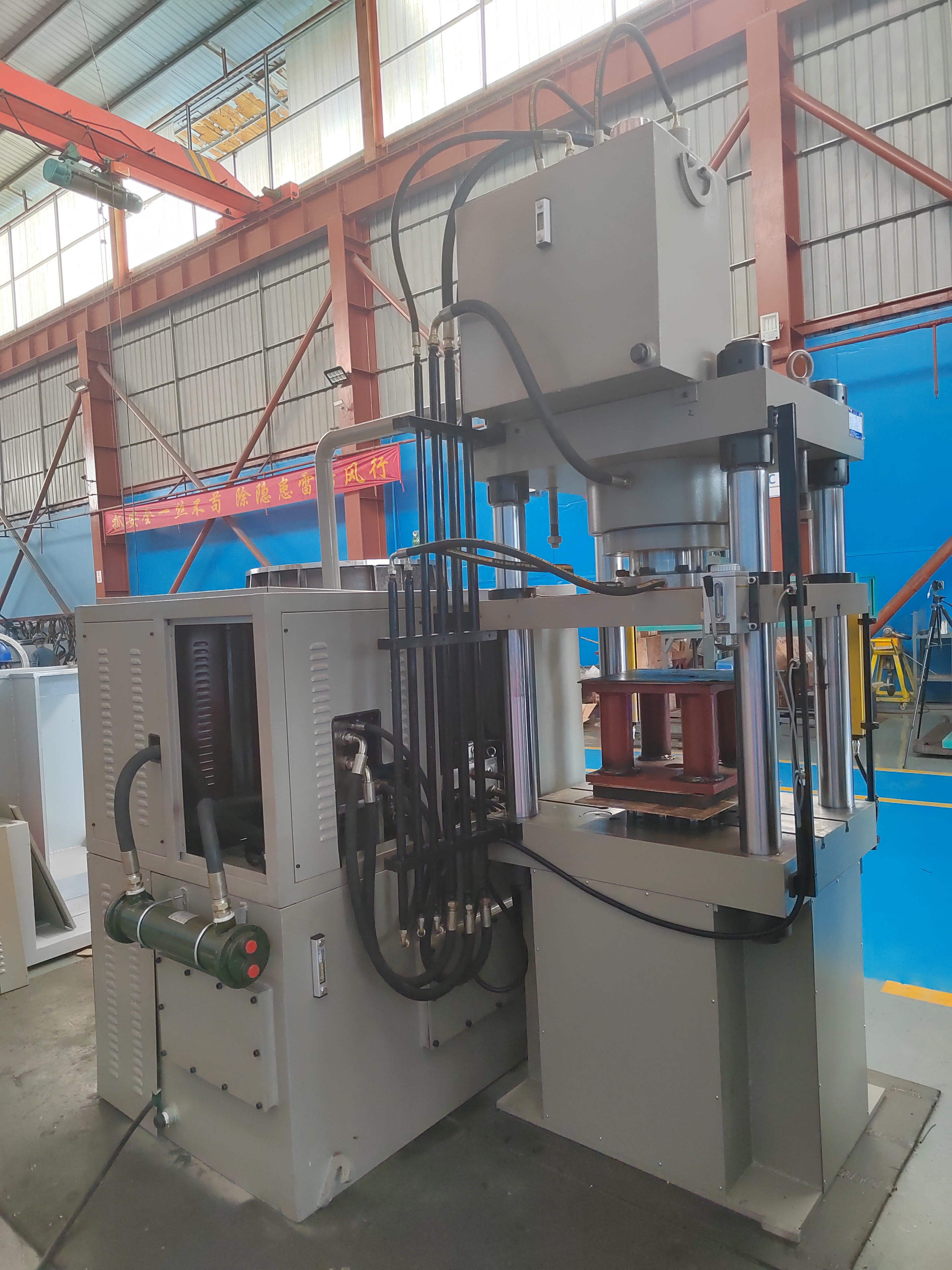

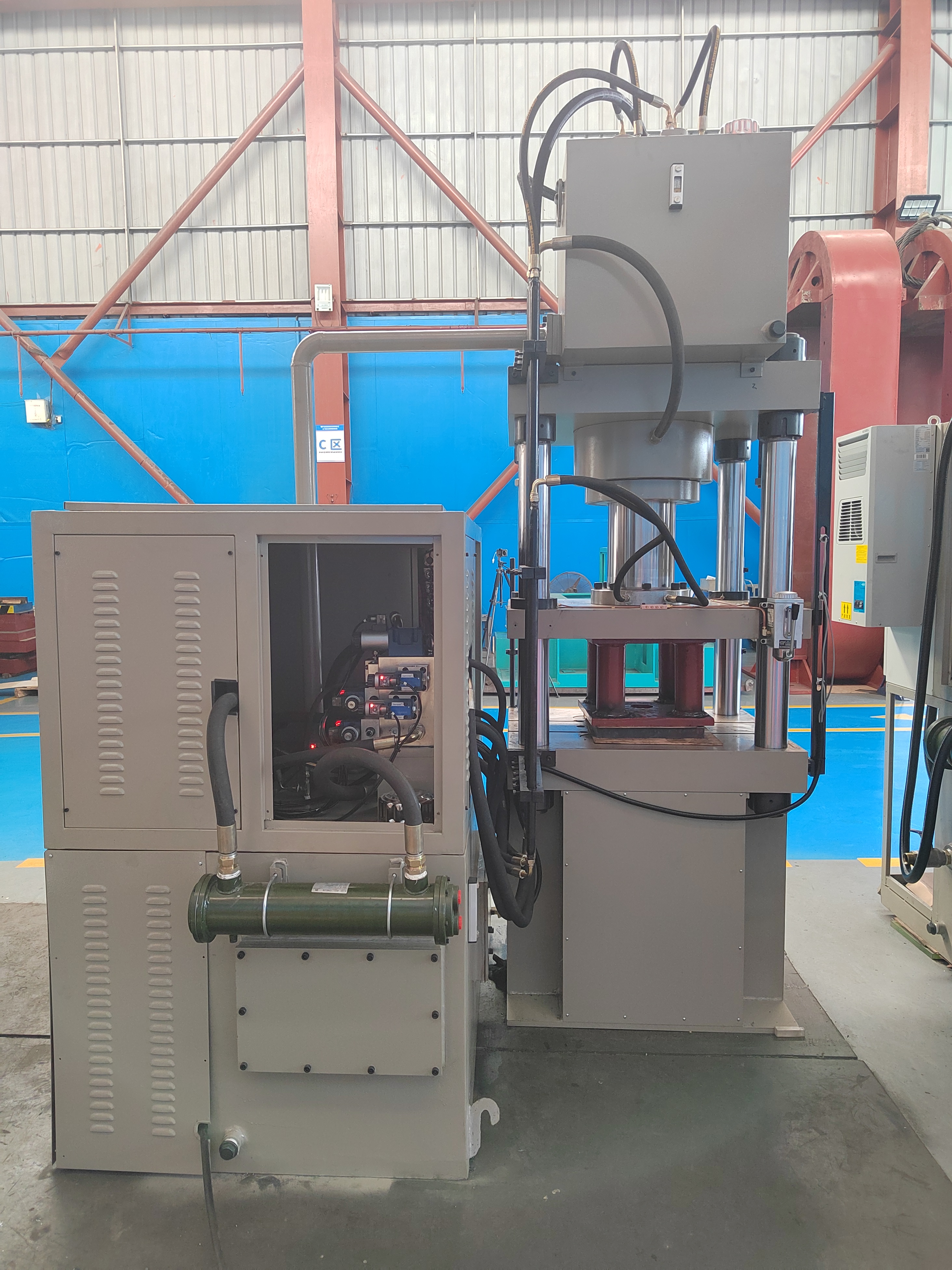

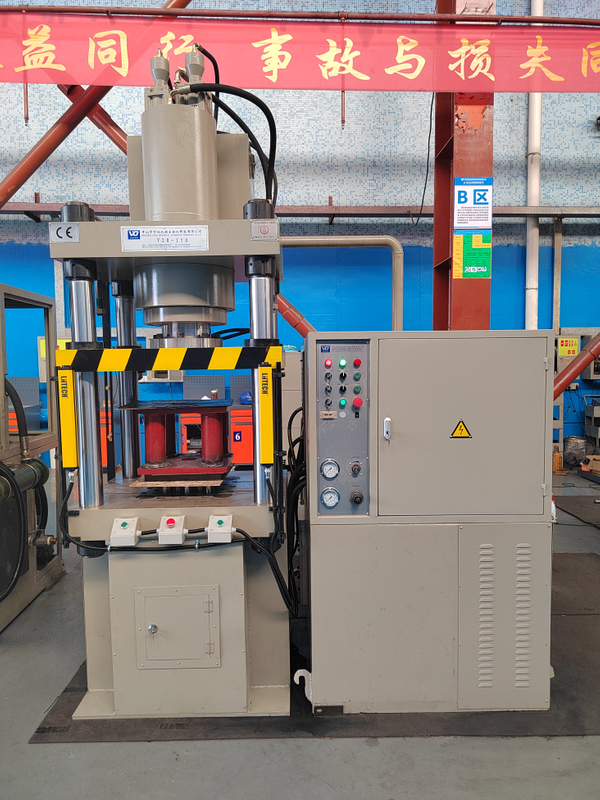

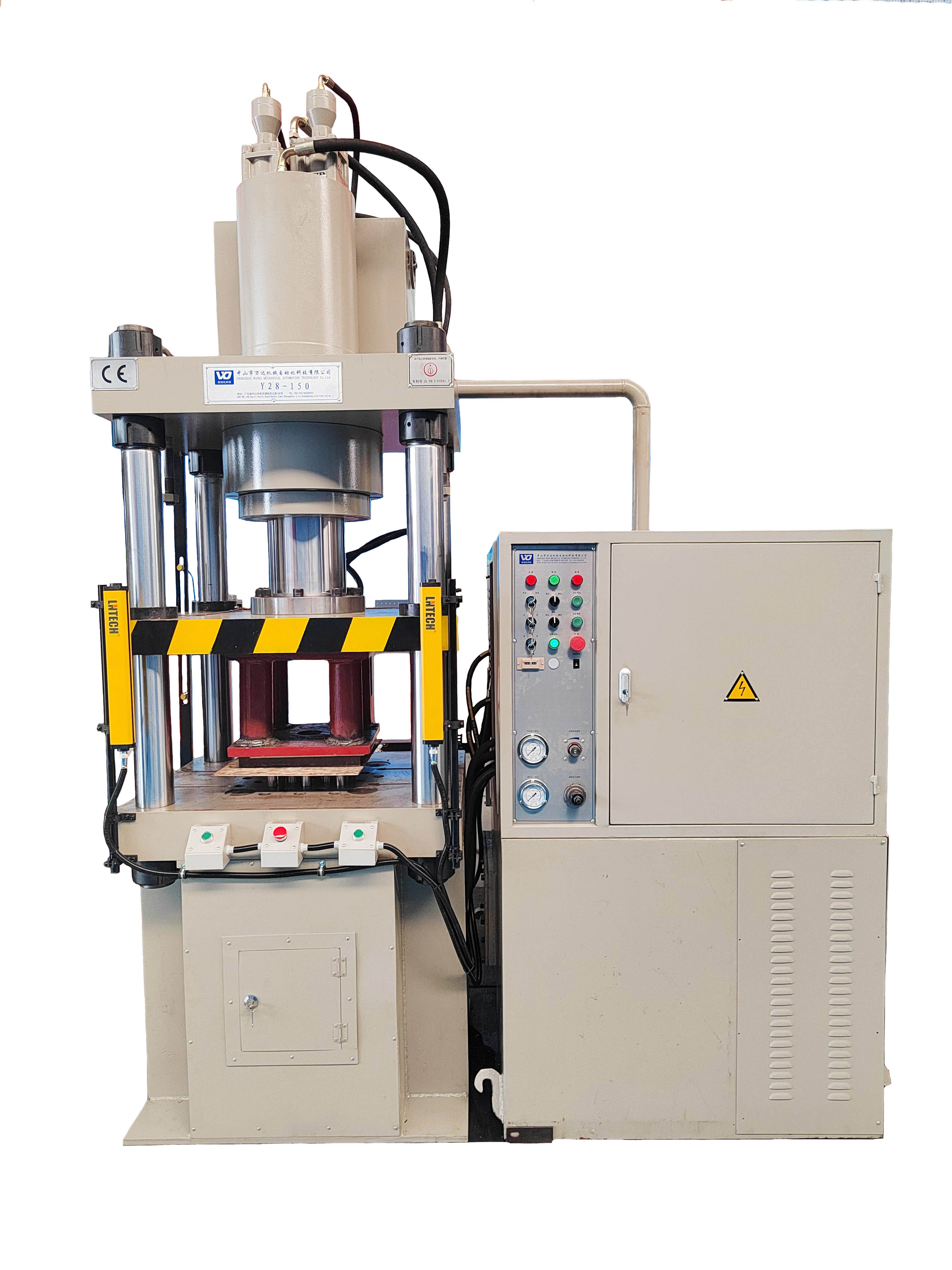

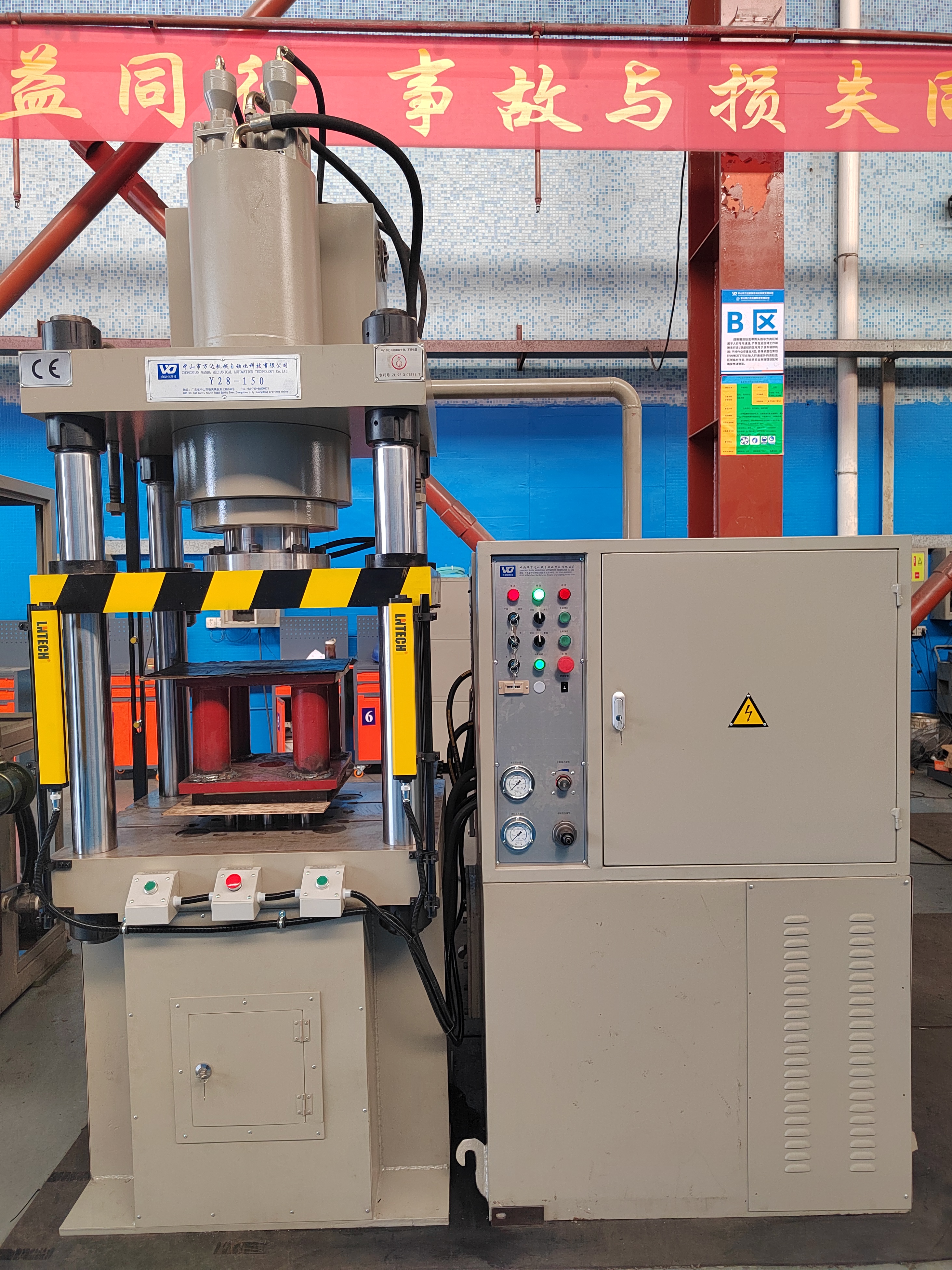

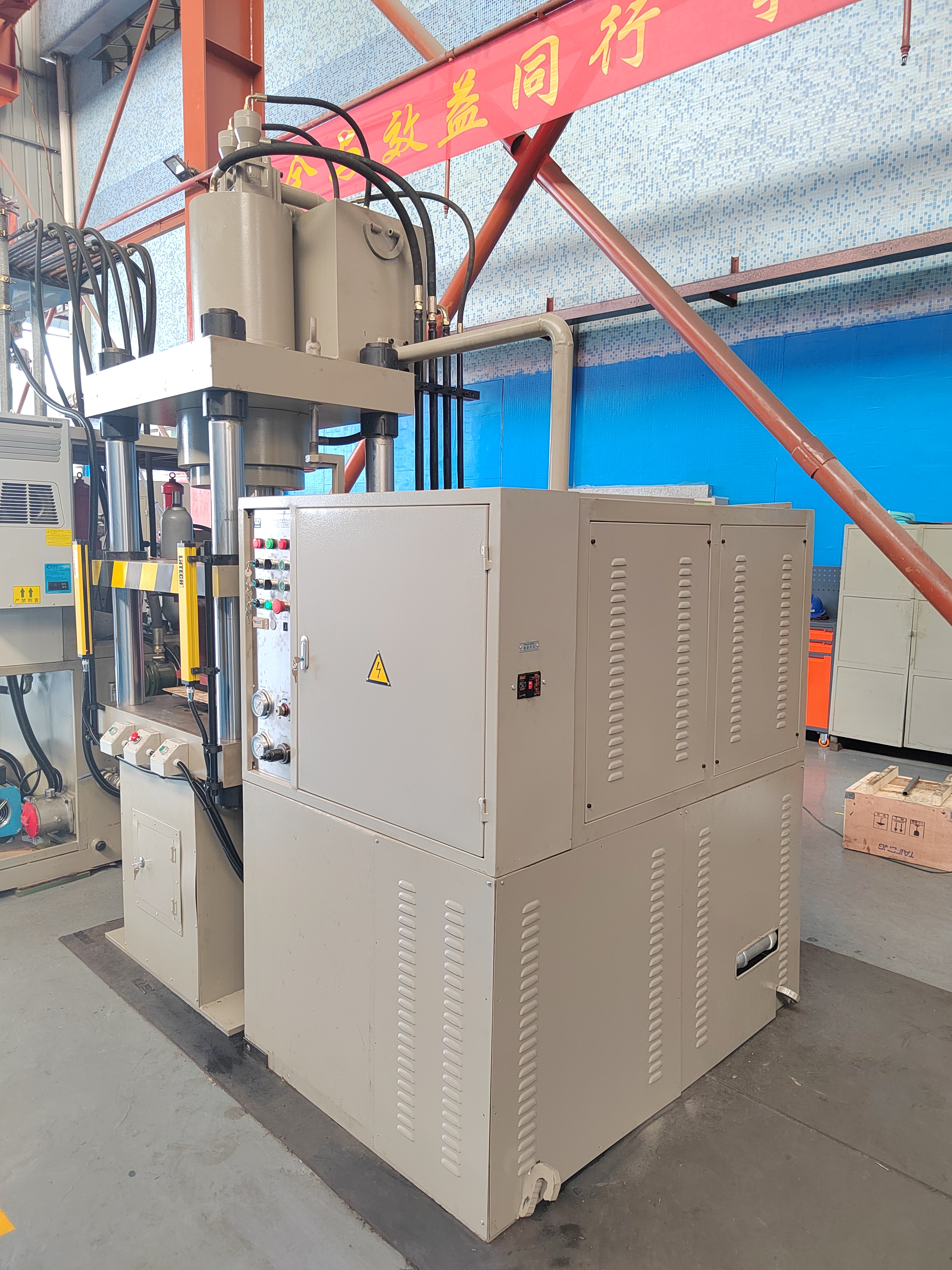

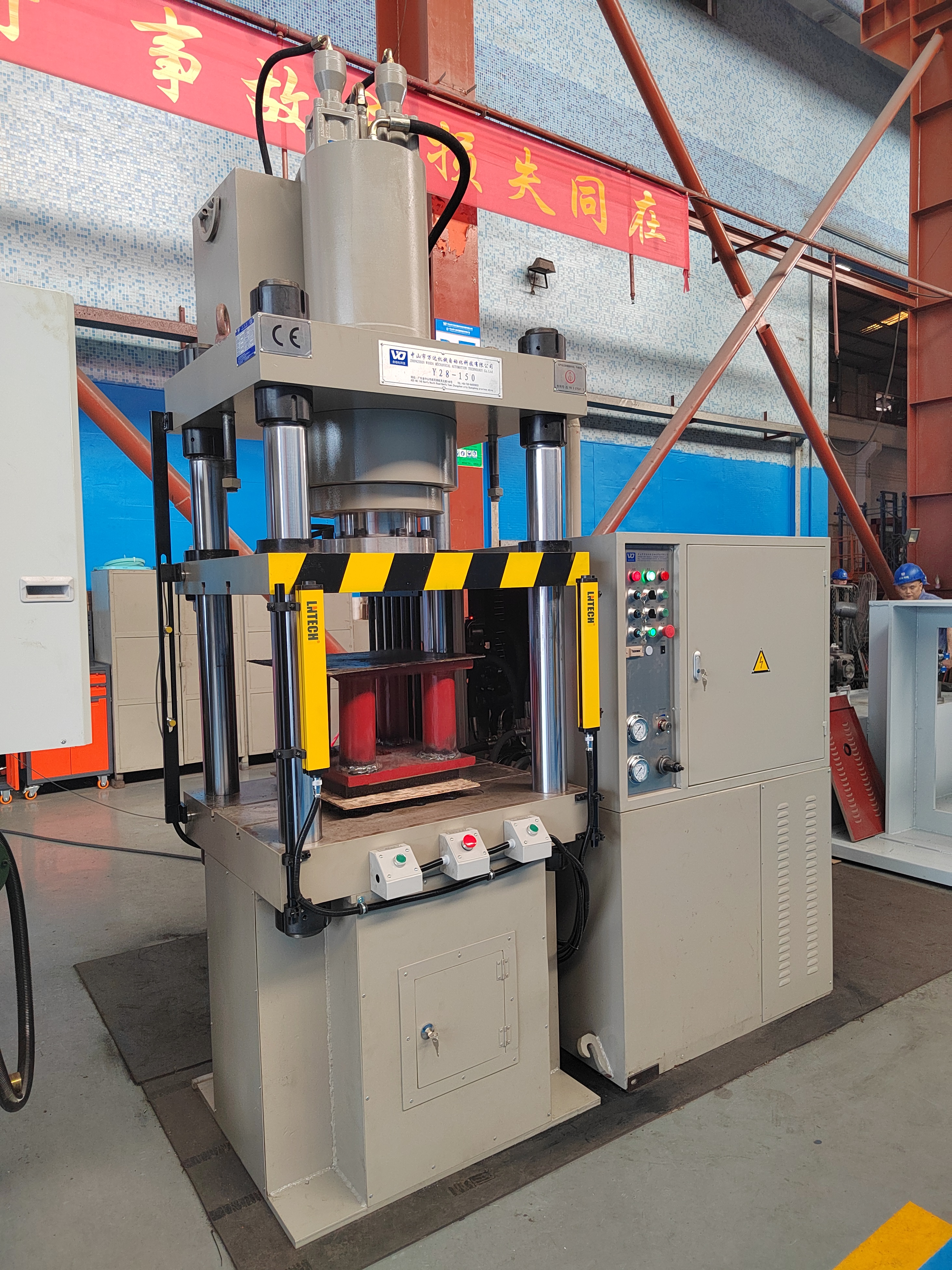

Y28-150
万达
产品描述
主要技术参数:Main technical parameters:
序号NO. | 项目Item | 单位Unit | Y28-150 | |
1 | 主缸力Main cylinder force | KN | 1000 | |
2 | 底缸力Bottom cylinder force | KN | 500 | |
3 | 顶料缸力Ejection cylinder force | KN | 100 | |
4 | 滑块行程Max. slider stroke | mm | 400 | |
5 | 底缸行程Max. bottom cylinder stroke | mm | 150 | |
6 | 顶料缸行程Max. ejection cylinder stroke | mm | 150 | |
7 | 工作区开口高度 Max. opening height in the workspace | mm | 600 | |
8 | 工作滑块速度 Working slider speed | 快下quick down | mm/s | 250 |
拉伸Stretch | mm/s | 14-25 | ||
回程return | mm/s | 220 | ||
9 | 底缸速度 Bottom cylinder speed | 顶出eject | mm/s | 65 |
退回send back | mm/s | 80 | ||
10 | 工作台面有效尺寸 Effective size of workbench | 左右(柱内) L.R(inside the column) | mm | 650 |
前后(边沿)F.B (edge) | mm | 750 | ||
11 | 液压系统压力hydraulic system pressure | MPa | 22.5 | |
12 | 电机功率Motor Power | KW | 18.5(普通电机)(Ordinary motor) |
