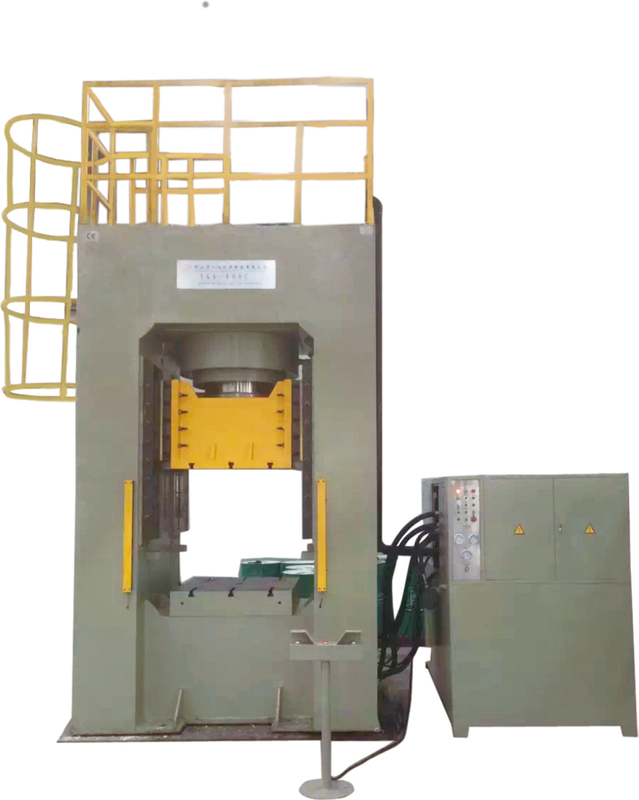

YKK-800C框架式精密伺服数控液压机

1.用途：本机器适用于铝型材冷挤压工艺，也适用于各种金属材料及可塑性材料的精密冲裁、落料、冲孔、弯曲、翻边、拉伸成型以及大型结构件的校正、汽摩配件精密冷、热挤压成型工艺。

2.特点：机器具有独立的液压系统和电气系统，并采用触摸屏显示精准位移与产品计数，触摸屏电脑＋PLC＋电子位移尺组合，方便设置与控制滑块上限、快转慢、下限、保压时间等参数。可实现手动调整和半自动及自动三种工作方式。每种工作状态均可实现精确位移定程及伺服比例定压两种压制方式。

1. Use: This machine is suitable for cold extrusion process of aluminum profiles, also suitable for precision blanking, blanking, punching, bending, flanging, drawing and forming of various metal materials and plastic materials, correction of large structural parts, precision cold and hot extrusion molding process of auto and motorcycle parts.
2. Features: The machine has an independent hydraulic system and electrical system, and uses the touch screen to display accurate displacement and product counting, touch screen computer +PLC+ electronic displacement ruler combination, easy to set and control the upper limit of the slider, fast slow, lower limit, pressure holding time and other parameters. Can achieve manual adjustment and semi-automatic and automatic three working modes. Each working state can achieve accurate displacement and servo proportional pressure two pressing methods.

状态：

数量：



询价加入询价篮

型号：
YKK-800C框架式精密伺服数控液压机
产品品牌：
万达

产品描述

产品描述

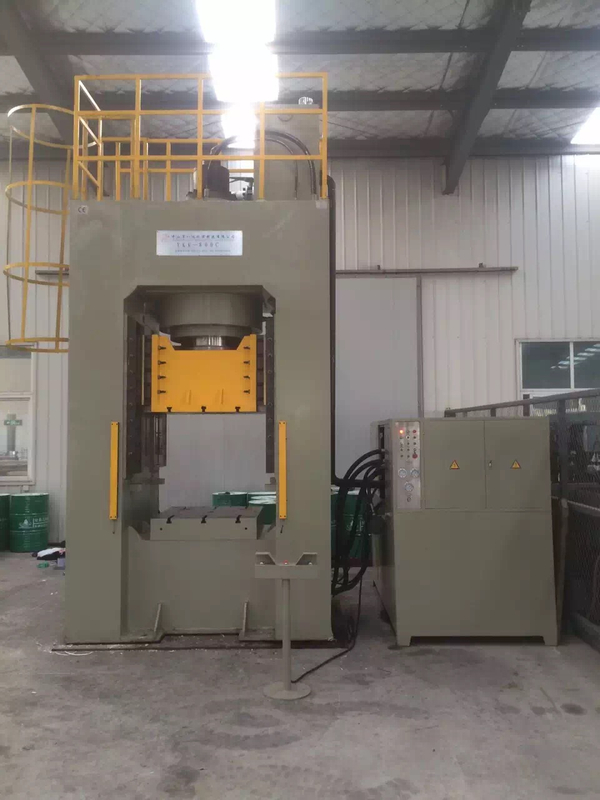

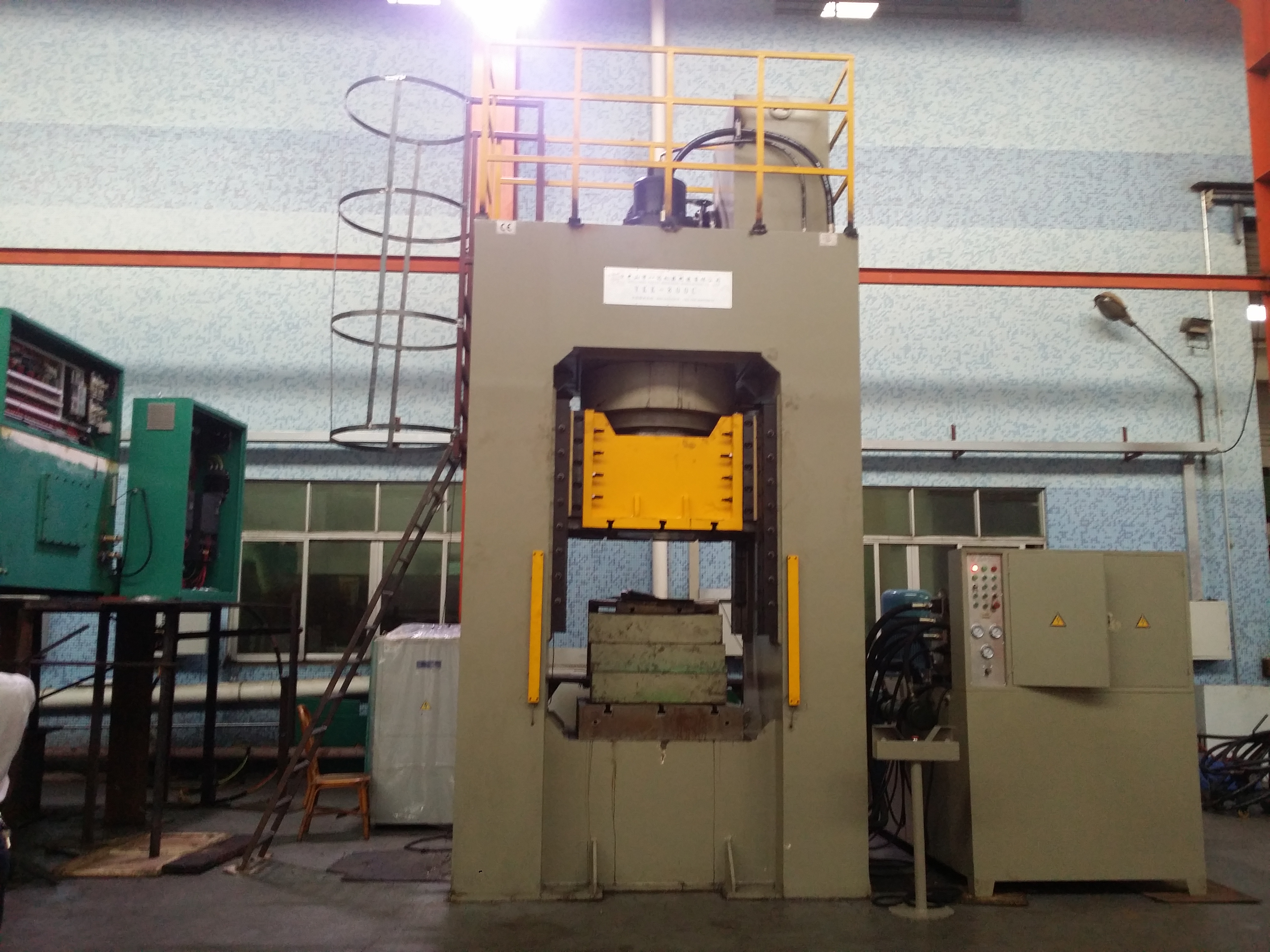

YKK-800C框架式精密伺服数控液压机现场图YKK-800C Frame type precision servo CNC hydraulic press site diagram：

YKK-800C框架式精密伺服数控液压机技术参数YKK-800C frame type precision servo CNC hydraulic press technical parameters：

序号NO.	项目 Item		单位 Units	YKK-800C
1	公称力 Nominal Force		KN	8000
2	主缸力 Main Cylinder Force		KN	8000
3	滑块行程 Slider Stroke		mm	500
4	工作区开口高度 Opening Height		mm	1100
5	底缸力 Bottom Cylinder Force		KN	600
6	底缸行程 Bottom Cylinder Stroke		mm	200
7	工作滑块速度 Slider Speed	快下 Fast Downward	mm/s	250
		慢下 Pressing	mm/s	6-16
		回程 Return	mm/s	185
8	工作台面有效尺寸 Worktable Size	左右 L.R	mm	1000
8	工作台面有效尺寸 Worktable Size	前后 F.B	mm	1000
9	液压系统压力 System Pressure		MPa	25
10	电机功率 Motor Power		KW	60
